Belt Tumble Chilling

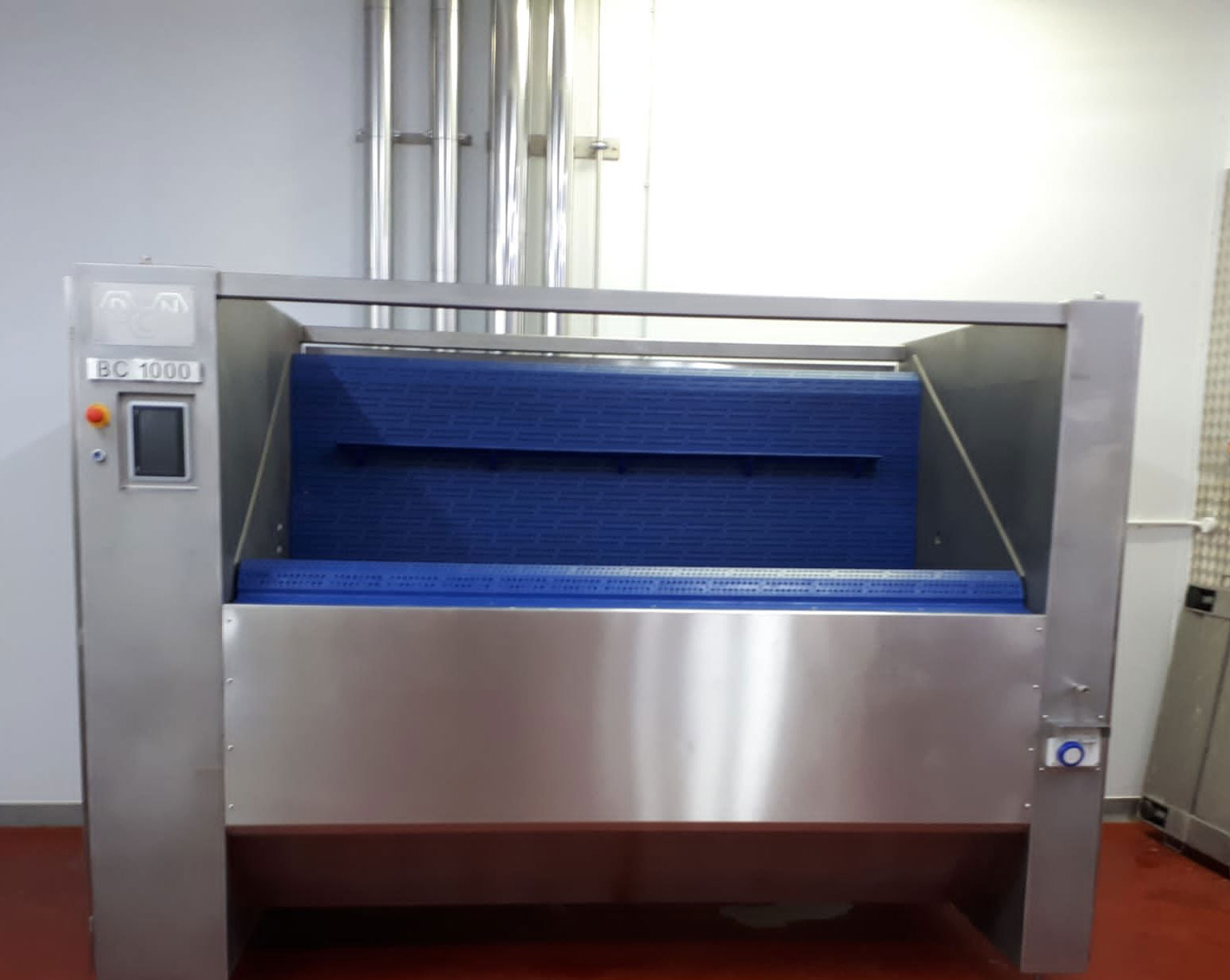

Belt Tumble Chiller Models
BC 500, BC 1000 & BC 1500
The DC Norris Belt Tumble Chiller cuts cooling times up to 70%. Designed for improved efficiency, faster cooling, and rapid hands-free unloading, the Belt Tumble Chiller delivers remarkable savings on overall production times, costs, and labor.
Capacity: 1,100 – 3,300 Pounds
Features:
- Reduce cooling times by up to 70%
- Fast, automated unloading
- Removes the need for manual labor, preventing RSI issues
- Energy-saving design
- Small footprint
- Simple to maintain, no rotating shaft seals

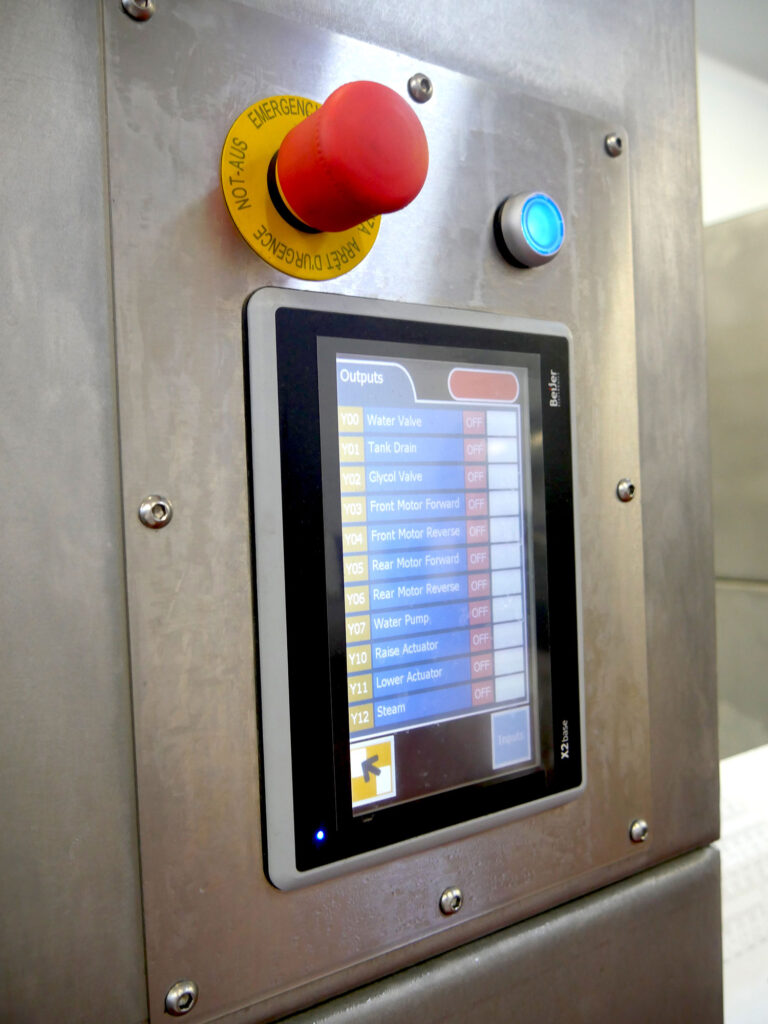

- Self-contained heat exchanger and controls with back flush for cleaning
- Unique massaging & bag handling features
- Automatic self-unloading (2 x standard tote bins)
- In-line Jet Heater for self-cleaning
- Small efficient pump
- Accommodates different batch sizes and delicate products
- Chilled water spray

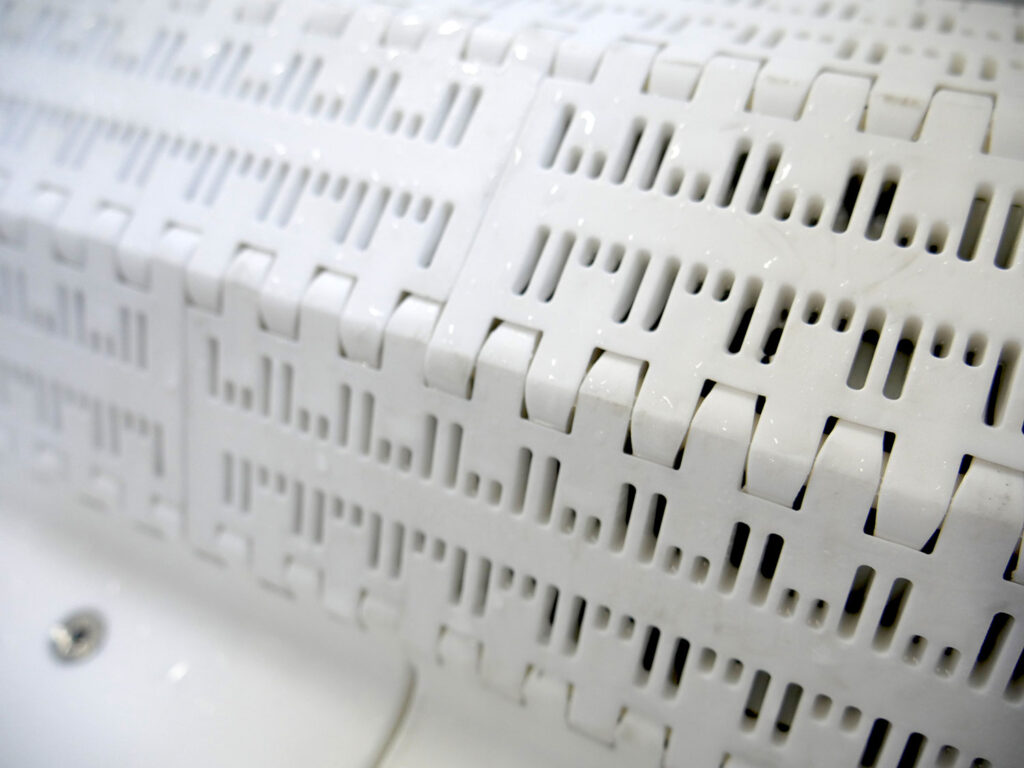

- Modular belt design
Dimensions & Service Requirements:
BC 500, BC 1000, BC 1500
| Height | Width | Depth | |
| BC 500 | 78.5" | 72" | 60.9" |
| BC 1000 | 78.5" | 115.7" | 60.9" |
| BC 1500 | 93.5" | 126.5" | 71.4" |
| Electrical | Glycol Supply | Mains Water | Steam | Compressed Air | |
| BC 500 | 480V / 3ph / 60Hz (16 amp) | 40 gallon/min (33F) | 25 gallon/min | 60 psi (220 lb/hr) | 90 psi (3.5 cubic ft/hr) |
| BC 1000 | 480V / 3ph / 60Hz (20 amp) | 53 gallon/min (33F) | 25 gallon/min | 60 psi (220 lb/hr) | 90 psi (3.5 cubic ft/hr) |
| BC 1500 | 480V / 3ph / 60Hz (24 amp) | 66 gallon/min (33F) | 25 gallon/min | 60 psi (220 lb/hr) | 90 psi (3.5 cubic ft/hr) |
Available in the US & Canada Exclusively through DC Norris North America

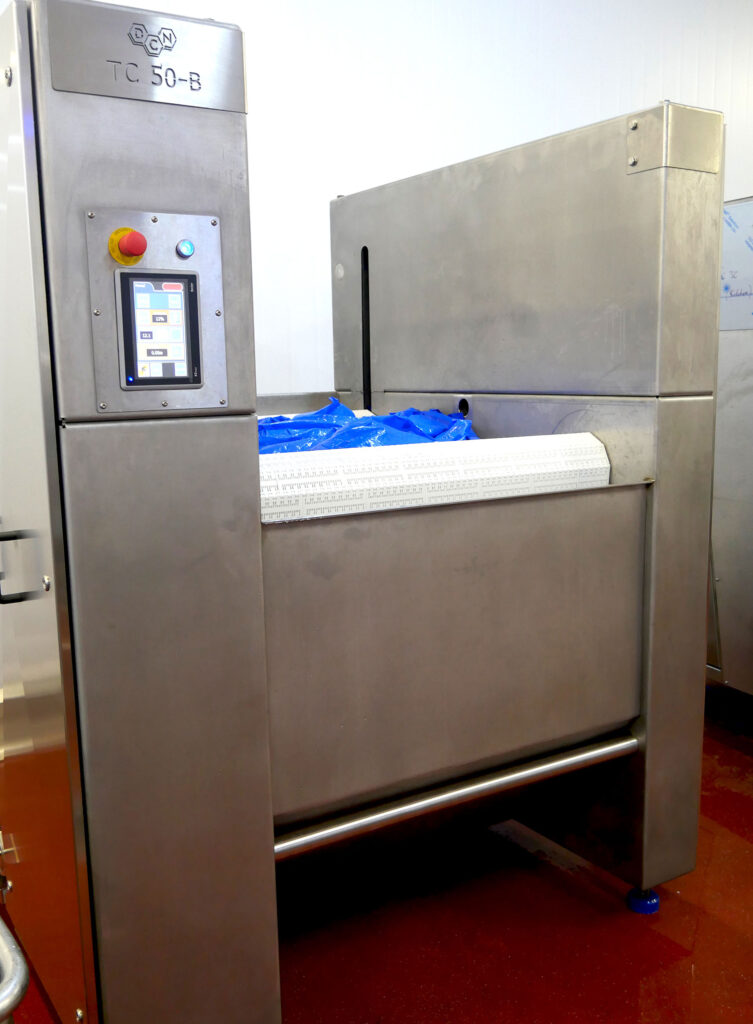

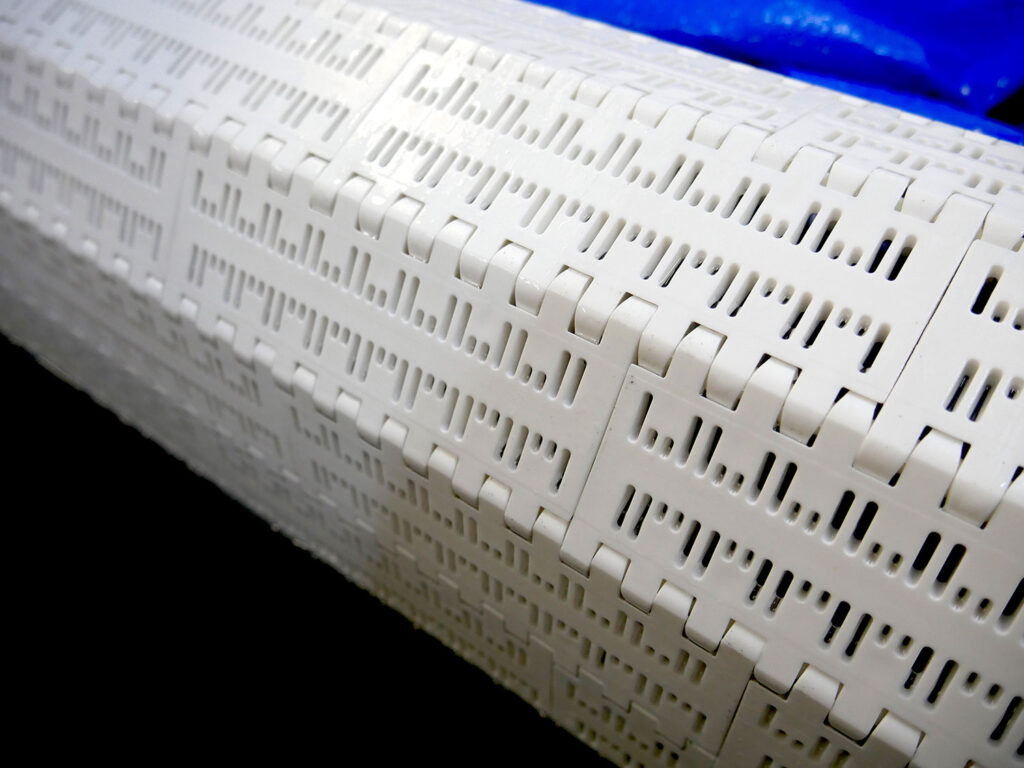

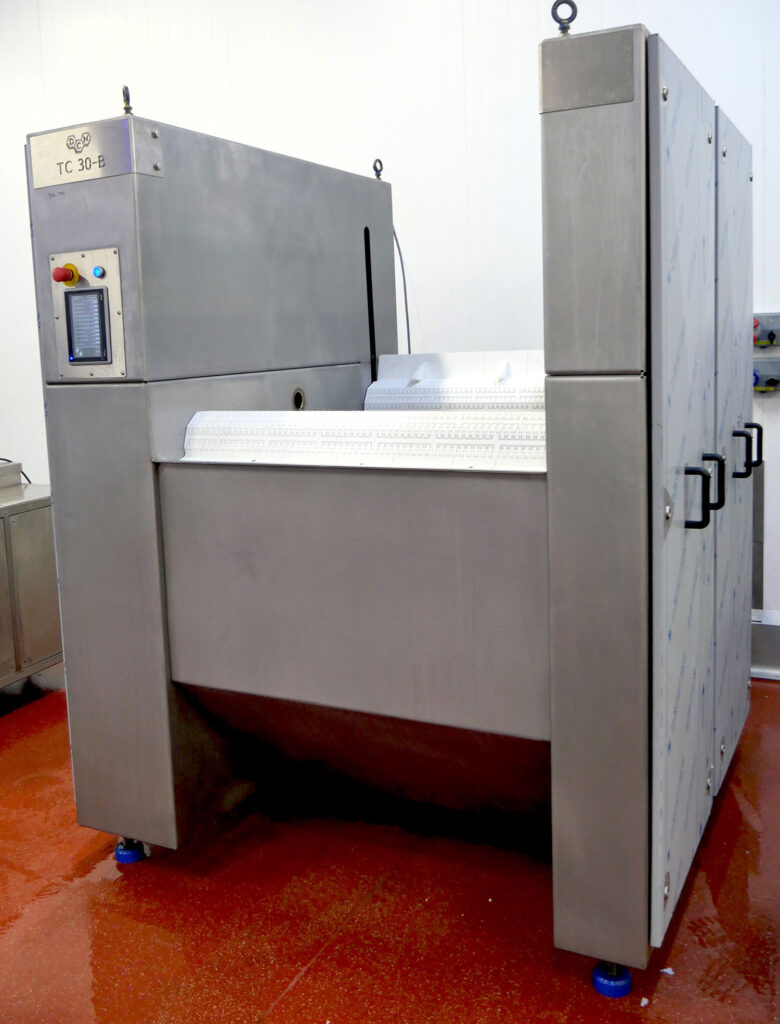

The Belt Tumble Chiller uses a flighted belt to massage the bags, replacing the rotating drum of our standard Tumble Chiller. This method circulates the chilled water more efficiently around the bags, resulting in faster cooling times, especially of more viscous products.
AVAILABLE IN 3 STANDARD SIZES:
500 L, 1,000 L, 1,500 L (custom sizes available upon request)
The Belt Tumble Chiller uses a flighted belt to massage the bags to replace the rotating drum of our standard Tumble Chiller. This method circulates the chilled water more efficiently around the bags, resulting in faster cooling times, especially for more viscous products. As a secondary cooling aid, chilled water is also sprayed on top of the bags during the cycle.

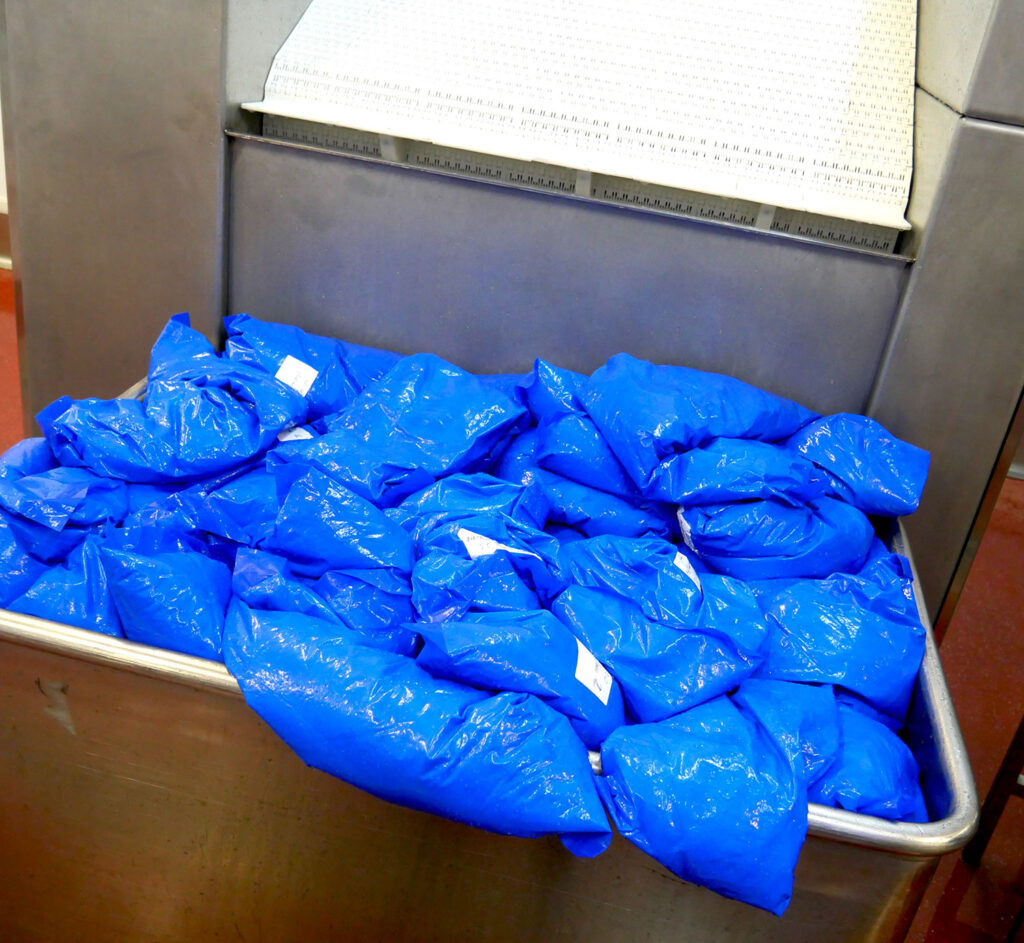

The unique self-unloading system takes a fraction of the time taken to manually unload traditional drum type chillers. A 500kg batch is typically unloaded in 60 seconds, reducing emptying time by approximately 25 minutes. When cooling is complete, the belt lifts the bags out of the water and deposits them directly into the customers tote bin. This feature removes the need for manual labor preventing any RSI issues.
If used with the Model 400 Heat Seal Pump Fill Station and Loading Device or with a conveyor, the unit can also be automatically loaded. The same chilled water is used for multiple batches, removing the requirement of a surge tank for emptying and re-filling. The Belt Chiller is simply ready to be re-used as soon as a batch has been unloaded. The bags can also be loaded from one side and unloaded from the other making it more convenient for in-line production.
*(timings are bag type and product dependent)
